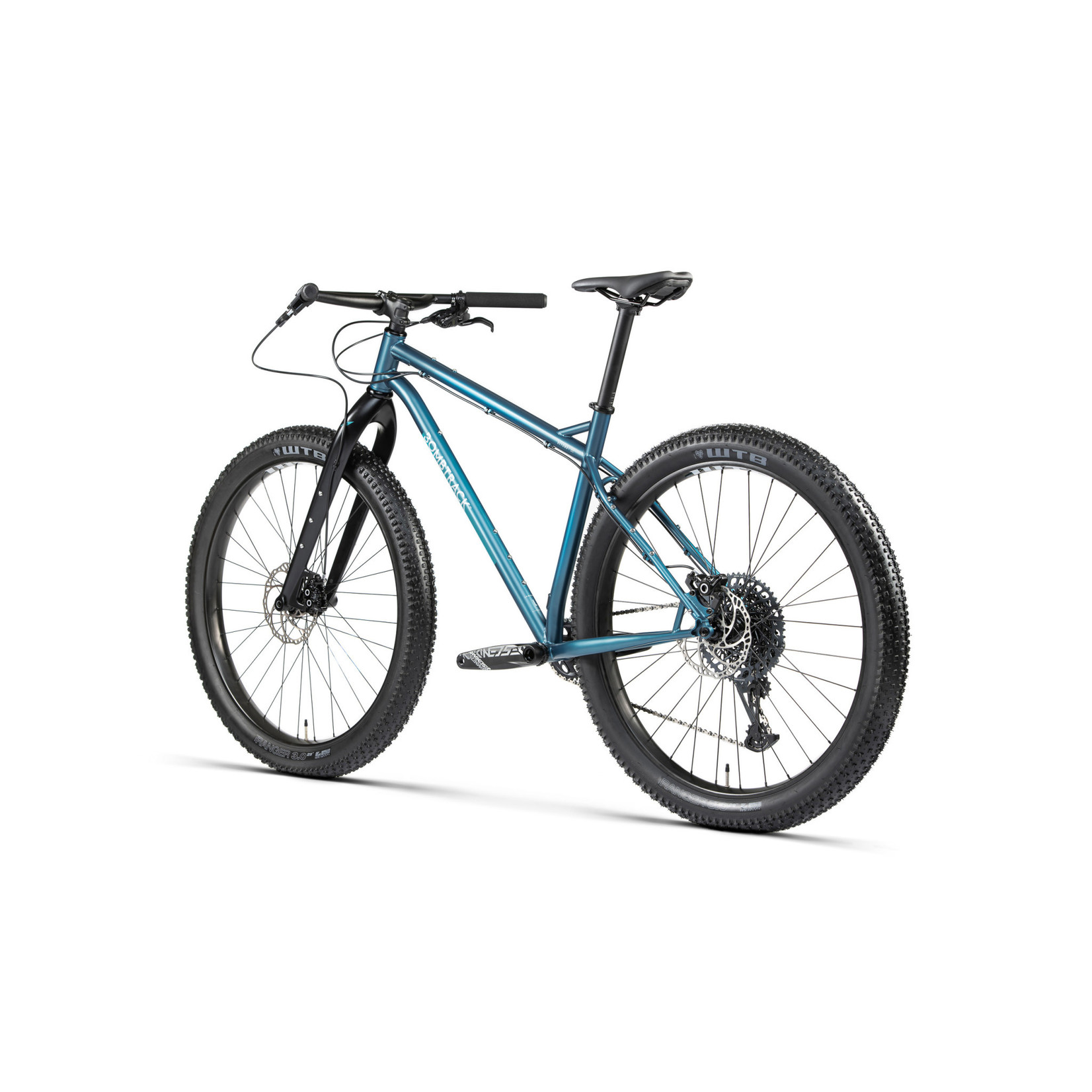

The Beyond+ ADV packs 29 Plus tires, free-spinning gearing, and a range of handling positions thanks to the vast sweep of a Jones H-Bar handlebar. Low profile geometry provides standover for technical riding while improving handling when ridden loaded.
The Beyond + ADV features a double-butted steel frame, accompanied by a tapered BPC carbon fork, cuts weight without losing comfort or control. Mounting points allow an array of cargo-carrying opportunities; the bike rounded off with a 10 – 52T cassette and Magura Trail Sport brakes mean only the edges of a map will hold you back.
Wheels: Tubeless-ready WTB ST i45 front rim, WTB ST i40 rear rim with tubeless-ready WTB Ranger Tough / Fast rolling 3.0” tires.

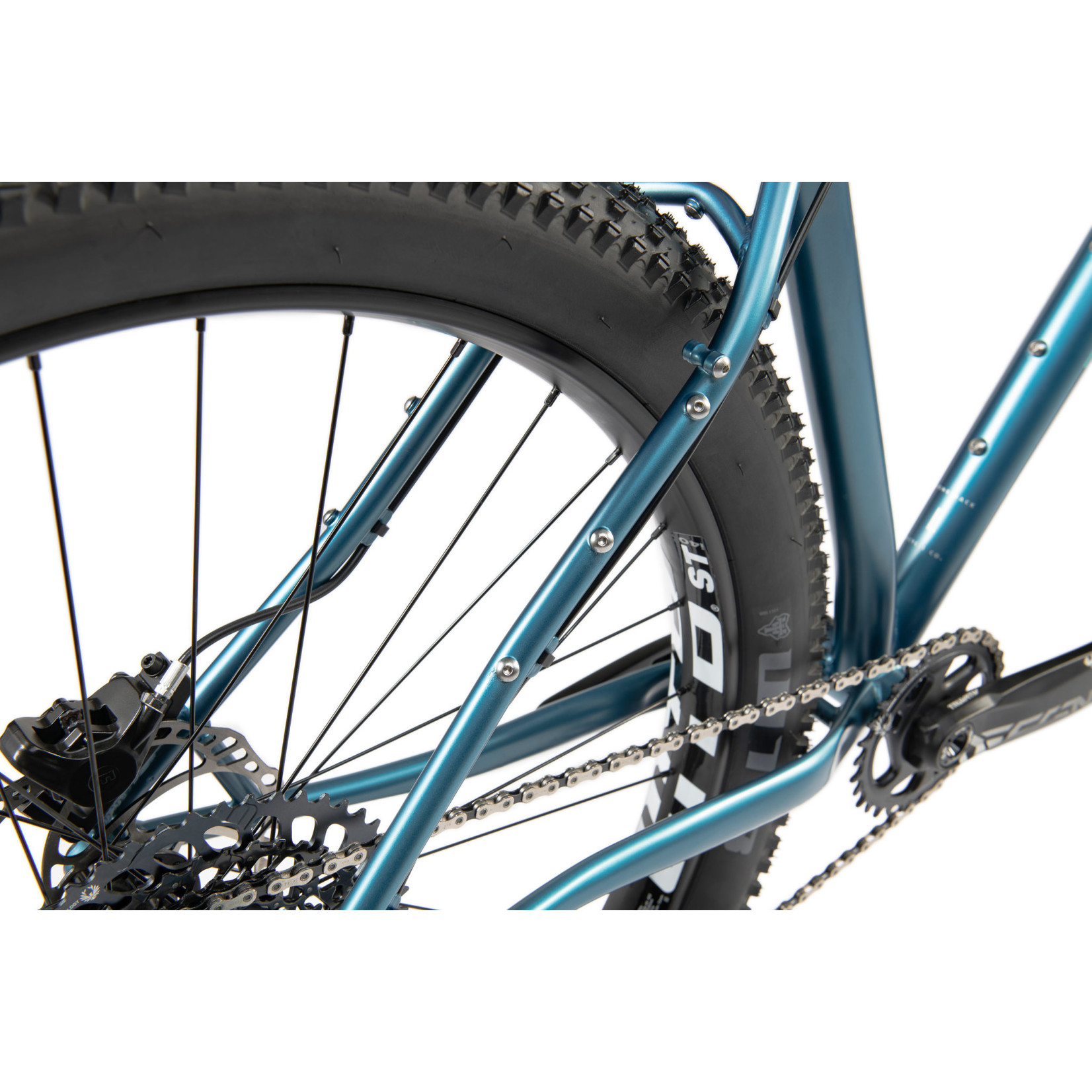

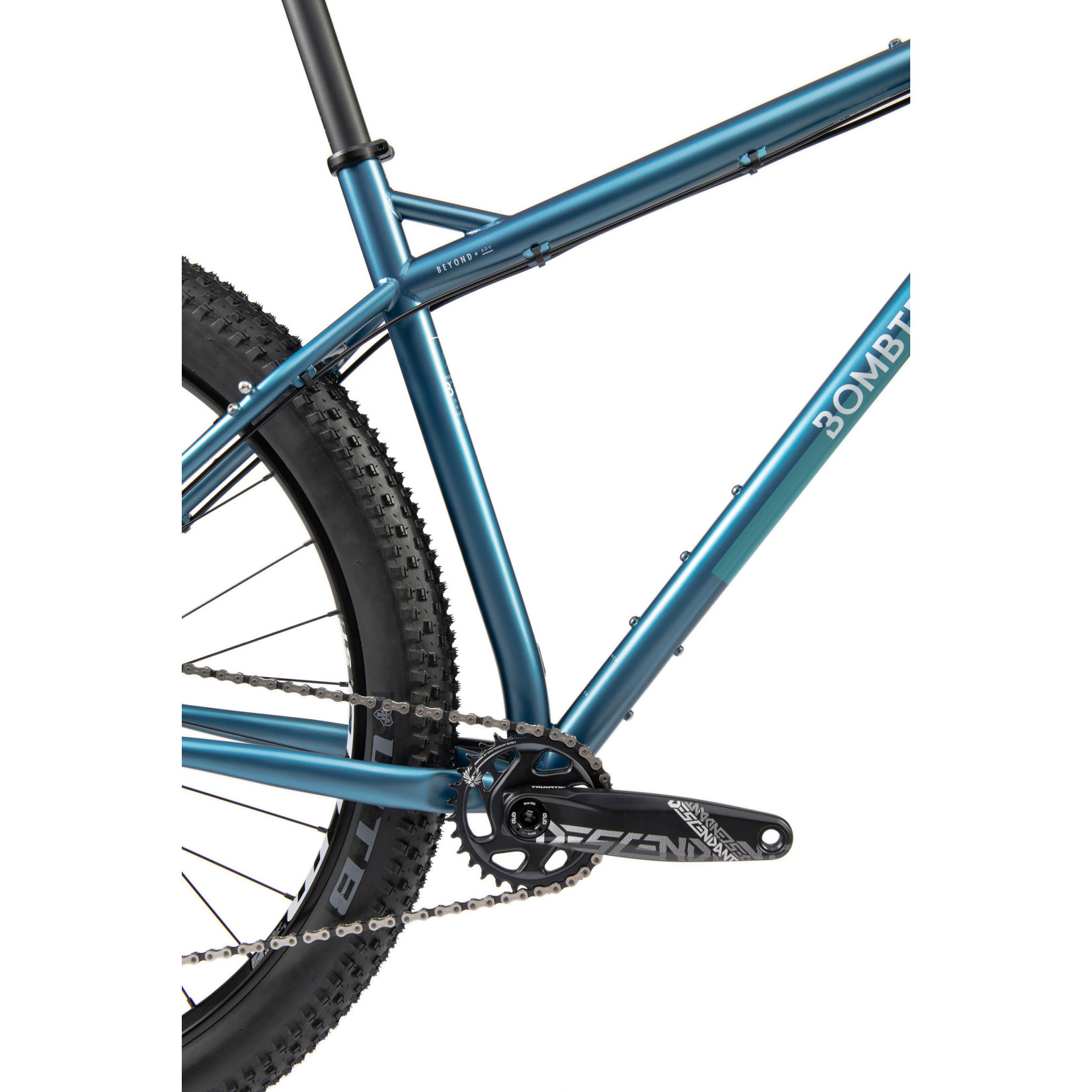

Frame: Double-butted suspension corrected CrMo frame with rack and fender mounts and BSA bottom bracket.
Fork: Bombtrack BPC full carbon fork with triple cage mounts on both legs.
Hubs: Bombtrack Grad Boost disc brake hubs with 15 and 12 mm through axles.

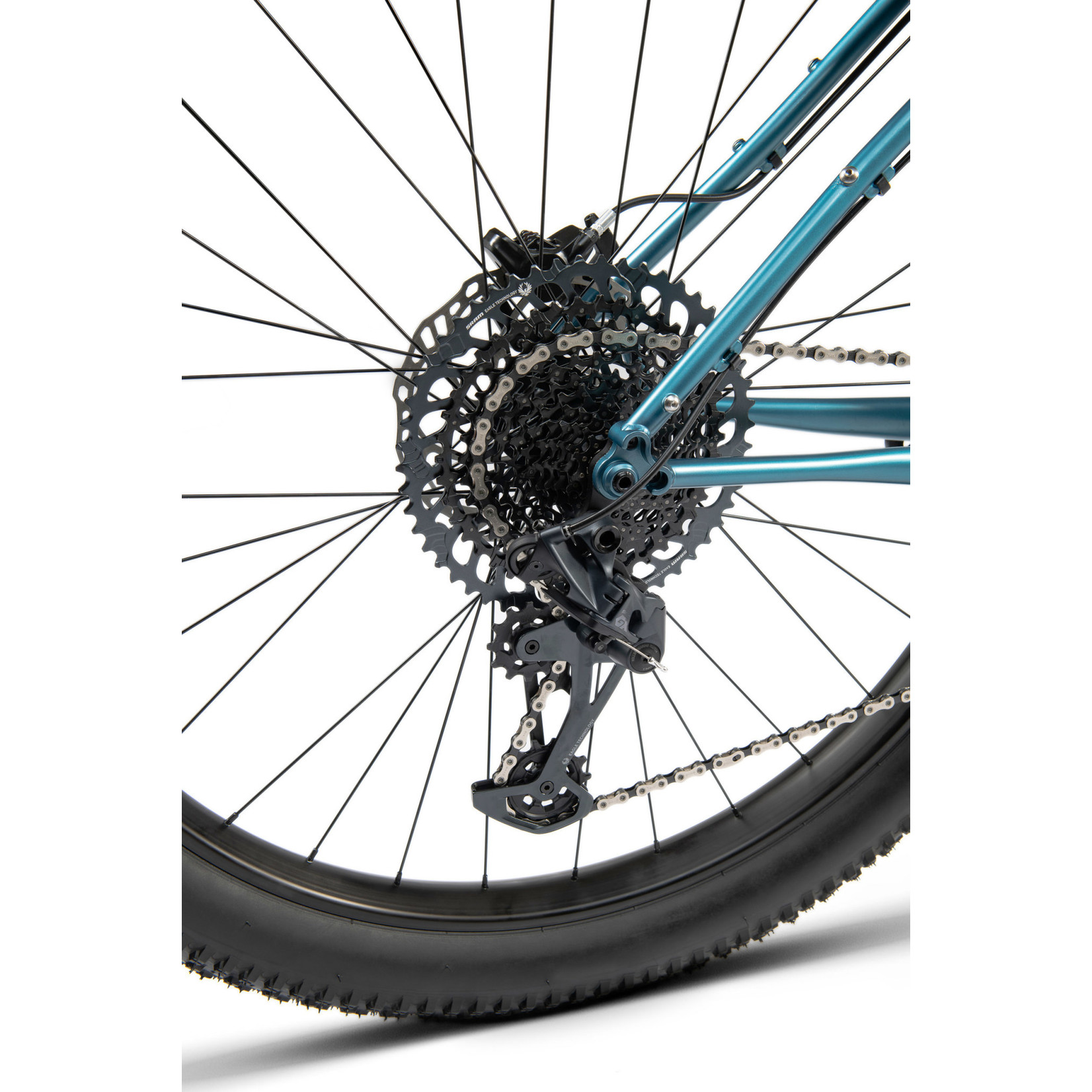

Drivetrain: Sram GX Eagle 12-speed drivetrain with 10 – 52t cassette.
Mounts: Top tube bag direct mounts, triple cage mounts on both seat stays, underneath and on top of the down tube, double cage mounts on the seat tube.

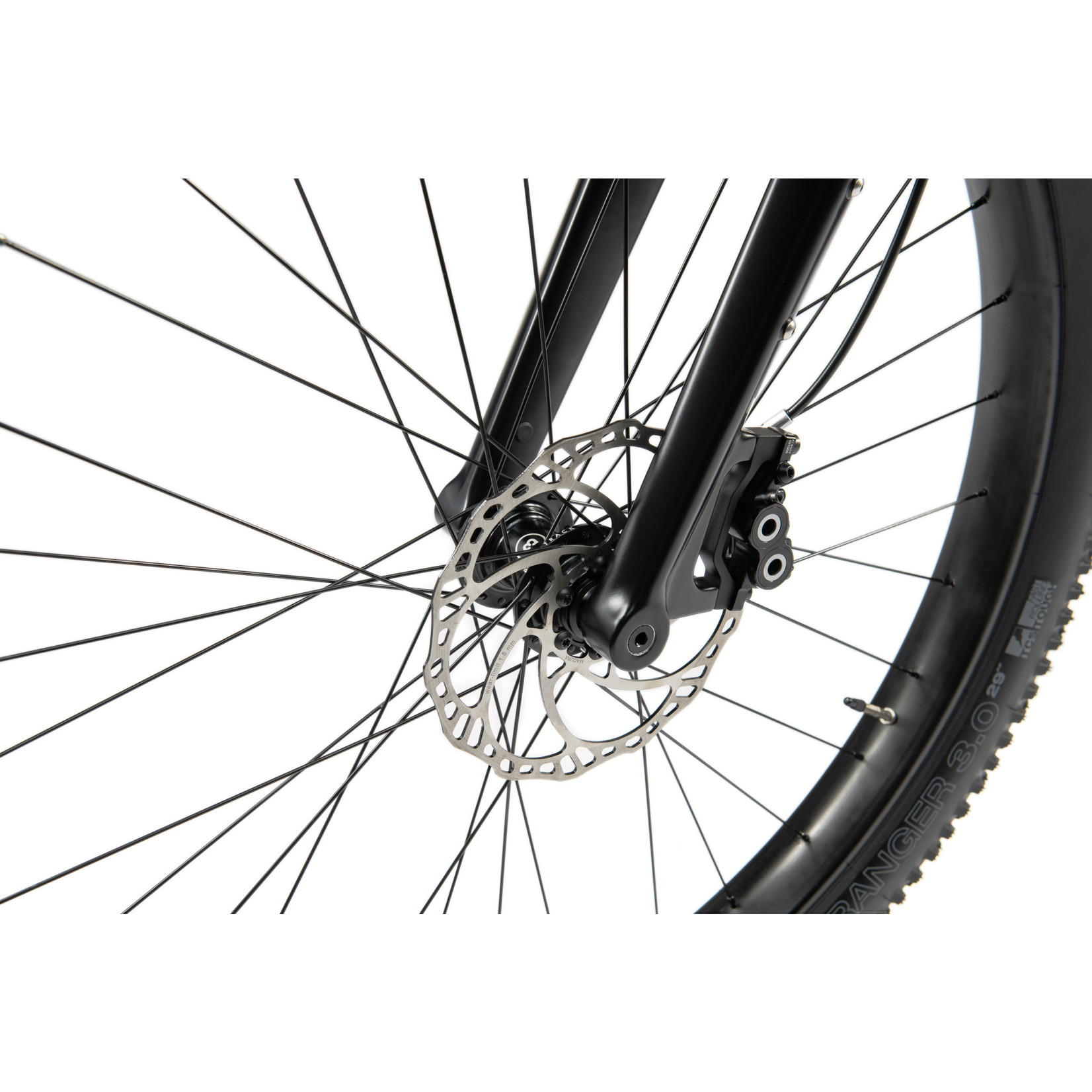

Disc Brakes: Magura Trail Sport hydraulic disc brake with four front pistons and two at the rear for maximum power and control.
Stealth dropper post routing
| Color 1 | Matt Metallic Teal |
| Color 2 | - |
| Frame | 4130 double butted CrMo, TA, rack/fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell ¹ |
| Fork | BOMBTRACK BPC full carbon, TA, 1.1/2'' - 1.1/8'', triple cage mounts, internal hub dynamo cable routing |
| Handlebar | JONES H-BAR LOOP 710 travel bar, 31.8 mm, 710 mm |
| Grips | BOMBTRACK SHIFT 170 mm grips |
| Stem | BOMBTRACK TRAMP forged aluminum stem, 3° |
| Headset | Sealed semi-integrated / external headset, 1.1/2'' - 1.1/8'' |
| Levers | MAGURA TRAIL SPORT hydraulic |
| Shifter | SRAM GX-EAGLE 12-speed trigger shifter |
| Brakes | MAGURA TRAIL SPORT 4 piston front, 2 piston rear with 180 mm rotors |

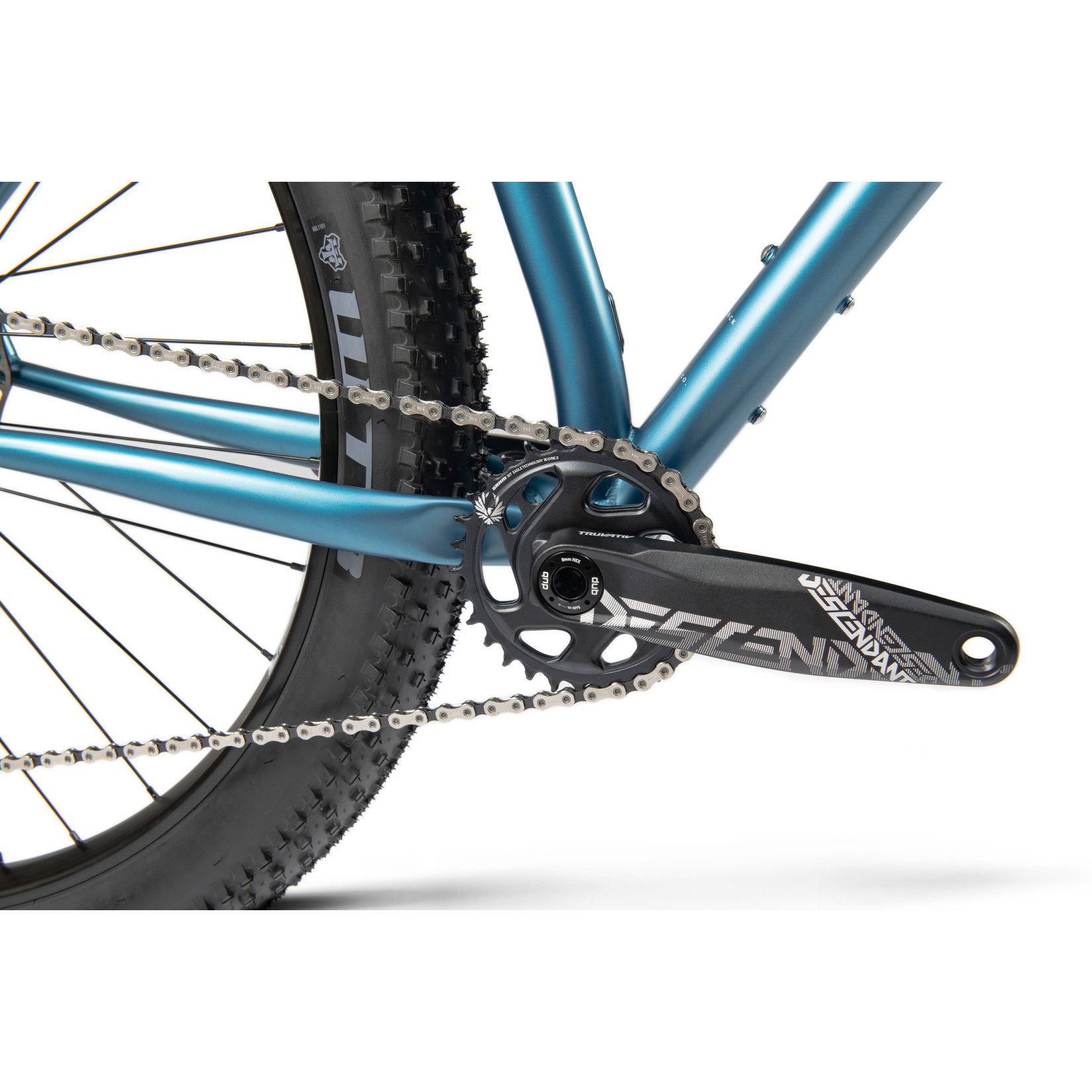

| Crankset | SRAM DESCENDANT aluminum crank, Boost DUB |
| BB | SRAM DUB BSA 73 mm |
| Pedals | - |
| Chain | SRAM GX EAGLE chain, 1/2'' x 11/128'', 118L |
| Chainring | SRAM EAGLE X-SYNC 2, narrow-wide, 30 T |
| Cassette | SRAM XG-1275 EAGLE 12-speed, 10 - 52 T |
| Front Derailleur | - |
| Rear Derailleur | SRAM GX EAGLE, clutch, long cage |
| Front hub | BOMBTRACK GRAD Boost sealed hub, 6-bolt disc |
| Rear hub | BOMBTRACK GRAD Boost sealed hub, XD driver, 6-bolt disc |
| Through axle | 15 x 110 mm / 12 x 148 mm |
| Front rim | WTB ST i45 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i40 double wall, TCS 2.0, 32h |
| Saddle | BOMBTRACK FUZZ |
| Seat post | BOMBTRACK YEW aluminum seatpost, 30.9 mm x 400 mm |
| Seat clamp | BOMBTRACK ORIGIN forged-aluminum seat clamp, 34.9 mm |
| Front tire | WTB RANGER TCS TOUGH / FAST ROLLING 29'' x 3.0'', tubeless ready |
| Rear tire | WTB RANGER TCS TOUGH / FAST ROLLING 29'' x 3.0'', tubeless-ready |
| Fender | - |
| Rack | - |
| Kickstand | - |
| Light | - |
| Weight | 13.7 kg (size M) |
| Weight frameset | 2910 g frame (size M, incl. TA, hanger) |
| Maximum rider weight | 140 kg incl. luggage |
| ASTM riding condition | 3 |
